How to Improve Airstream Airflow with High-Flow Air Vents
Share
Your Airstream's air-conditioning system can only perform as well as the airflow path around it allows. Filters, ductwork, return-air openings, and ceiling vents all affect how easily conditioned air moves through the trailer.
For Airstreams equipped with the QuietStream ducted HVAC system, one commonly overlooked part of that airflow path is the ceiling air vent itself. The factory vents distribute conditioned air throughout the trailer, but their design can also create restriction and limit how precisely you can control where that air goes.
Upgrading to high-flow Airstream air vents can provide a less restrictive outlet, more control over air direction, and a more comfortable interior without changing the rooftop air conditioner or ductwork.
This guide explains how Airstream HVAC airflow works, why vent design matters, and what to consider when choosing replacement QuietStream air vents.
How the Airstream QuietStream HVAC System Moves Air

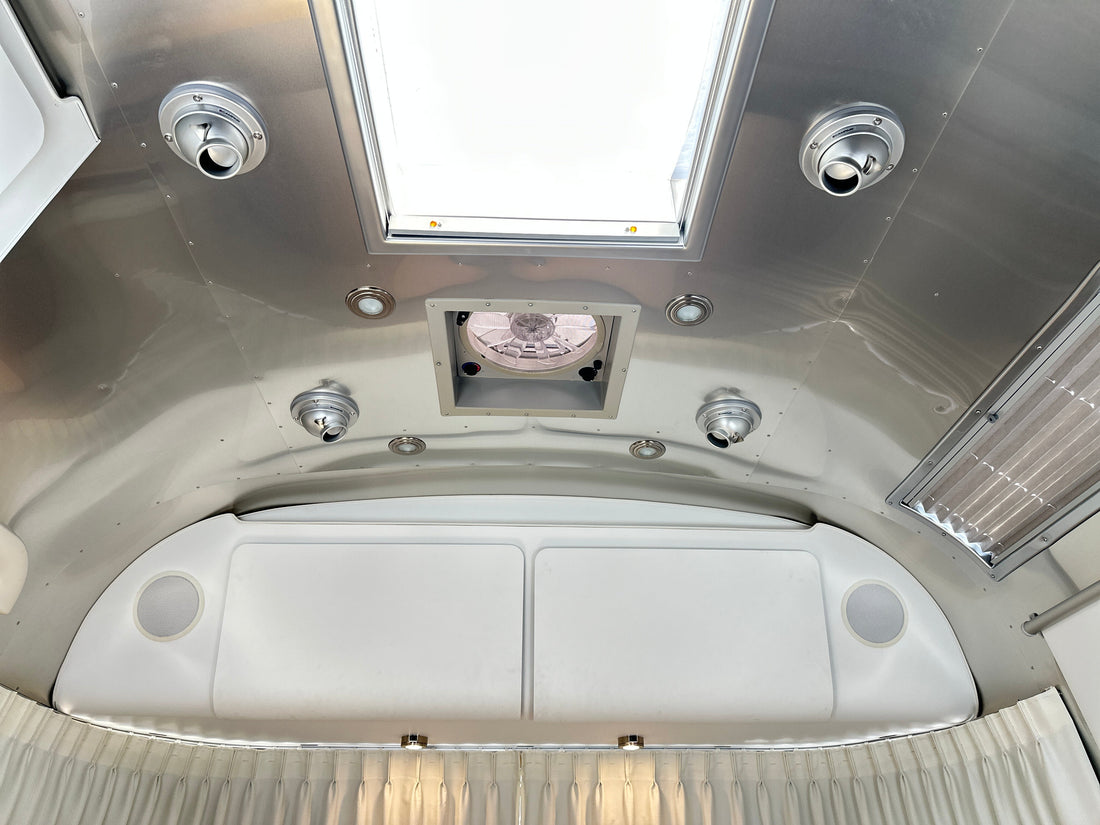

Airstream's QuietStream system uses ductwork in the ceiling to distribute conditioned air from the rooftop air-conditioning system throughout the trailer. Instead of all of the air exiting directly beneath the rooftop unit, it travels through the ducts and exits through multiple ceiling vents.
This helps spread conditioned air throughout the living area, bedroom, and other parts of the trailer.
However, every component the air passes through introduces some amount of resistance. The final component in that path is the ceiling vent.
A vent might look like a relatively simple part, but the size and shape of its internal airflow path can affect both how much air leaves the duct and where that air goes once it enters the cabin.
Why Airstream Air Vent Design Matters
Air naturally takes the path of least resistance. When conditioned air reaches a restrictive outlet, it must accelerate and change direction as it passes through the smaller opening.
This can affect several things you notice inside the trailer:
- How much air comes from each ceiling vent
- How strongly you feel the airflow
- Where the conditioned air is directed
- The amount of air noise produced at the vent
- How evenly different areas of the Airstream cool or heat
This is why improving an Airstream's HVAC performance is not always about replacing or upgrading the air conditioner itself. Sometimes the restriction is farther downstream.
High-Flow Air Vents Reduce Unnecessary Outlet Restriction
A high-flow air vent is designed with a more open airflow path so conditioned air can leave the HVAC duct with less restriction.
CAMPAIR high-flow air vents were designed specifically around this principle. Their larger, more direct airflow path allows substantially more air to pass through the vent than the original Airstream vent design.
In CAMPAIR airflow testing, the high-flow vent design provides approximately twice the airflow of the stock vent under comparable conditions.
That does not mean an upgraded vent makes the air conditioner itself twice as powerful. Instead, it means the vent is creating less of a bottleneck between the QuietStream duct and the interior of the trailer.
Compare CAMPAIR high-flow air vents to see the differences between the Steel, Satin Aluminum, and Signature Aluminum Series.
More Airflow Is Only Part of the Benefit
Airflow volume is important, but where that air goes can matter just as much.
In an Airstream, occupants are usually much closer to the ceiling vents than they would be in a house. A vent positioned only a few feet away can make the difference between being comfortable and having cold air blowing directly onto you.
A directional high-flow vent gives you control over both airflow volume and airflow direction.
That means you can point conditioned air toward the part of the trailer that needs it instead of simply accepting the direction determined by the original vent.
Directed Airflow vs. Random Airflow
One of the biggest practical advantages of an adjustable Airstream air vent is the ability to decide where the air goes.
For example, you might want to:
- Direct cool air toward the bed on a hot night
- Point a vent toward the main seating area during the day
- Redirect air away from someone sitting directly beneath a vent
- Send more conditioned air toward an area receiving direct sunlight
- Adjust the airflow pattern as your needs change throughout the day
CAMPAIR high-flow vents can pivot through 360 degrees, allowing the outlet to be aimed where conditioned air is most useful.
This is especially helpful in an RV because the thermal conditions inside the trailer can change considerably depending on sun exposure, outside temperature, occupancy, and which areas of the Airstream are being used.
Adjustable Airflow Helps You Fine-Tune Comfort
Direction is not the only adjustment that matters.
CAMPAIR air vents also incorporate airflow control, allowing you to reduce or shut off airflow at an individual vent when desired.
This can be useful when one section of the trailer is receiving more conditioned air than another or when you simply do not want air coming from a particular vent.
The goal should generally be to balance airflow, rather than closing a large number of vents throughout the system. Restricting too many outlets can work against the reason for installing high-flow vents in the first place.
Instead, small adjustments allow you to tune the system to the way you actually use your Airstream.
Can High-Flow Air Vents Make an Airstream Quieter?
They can reduce one particular type of HVAC noise: the sound created by air moving through the ceiling vent.
When a large volume of air is forced through a relatively restrictive opening, the resulting turbulence can create a noticeable rushing or whooshing sound.
A more open airflow path allows air to exit with less restriction, which can reduce some of that vent-generated airflow noise.
It is important to distinguish this from the mechanical noise produced by the rooftop HVAC unit itself. Changing the ceiling vents will not eliminate compressor or blower noise.
What it can do is reduce unnecessary noise created at the final point where conditioned air exits the ductwork.
Does Lower Vent Restriction Help the HVAC System?
HVAC systems rely on moving air. Any unnecessary restriction in the airflow path increases resistance against that movement.
A less restrictive ceiling vent allows air already traveling through the QuietStream ductwork to enter the trailer more freely.
It would be misleading to claim that simply replacing the vents will solve every HVAC problem or guarantee a longer air-conditioner lifespan. However, reducing unnecessary outlet restriction is generally preferable to forcing the system to move the same air through a more restrictive opening.
For owners trying to improve QuietStream airflow, the vents are therefore one part of the system worth considering alongside filters, return-air openings, duct condition, and the HVAC equipment itself.
Why Adjustable Vents Are Especially Useful in an Airstream
The interior of an RV creates airflow challenges that are different from those in a house.
Airstream interiors are relatively compact, occupants sit and sleep close to the ceiling outlets, and large windows can create significant temperature differences from one area to another.
The sunny side of the trailer may require considerably more cooling than the shaded side. The bedroom may need more airflow at night but very little during the day. Someone sitting beneath a vent may want the air redirected while another person across the trailer wants more cooling.
Adjustable directional vents let the HVAC system adapt to these changing conditions without requiring changes to the ductwork itself.
Common Causes of Weak Airstream AC Airflow
If the airflow from your QuietStream system seems weak, the ceiling vents are only one possible cause.
Before assuming the air conditioner itself has a problem, check several basic areas:
- Dirty HVAC filters: A clogged filter can restrict air before it reaches the ductwork.
- Blocked return-air openings: The system needs adequate return airflow to circulate air properly.
- Closed or restricted vents: Make sure adjustable outlets are not unintentionally shut.
- Vent design: A restrictive outlet can limit how easily conditioned air leaves the duct.
- Duct issues: Disconnected, damaged, or obstructed ductwork can reduce airflow.
- HVAC equipment problems: Blower, evaporator, electrical, or other mechanical problems can also cause weak airflow.
If airflow remains poor after the filters, returns, vents, and visible duct openings have been checked, the system may need professional diagnosis.
For a broader look at filters, airflow, seasonal inspections, and HVAC troubleshooting, see our Airstream HVAC maintenance guide.
Factory Airstream Vents vs. High-Flow Air Vents
| Feature | Factory-Style Vent | CAMPAIR High-Flow Vent |
|---|---|---|
| Airflow | More restrictive airflow path | High-flow design with less outlet restriction |
| Direction | Limited by factory design | 360° directional adjustment |
| Flow Control | Varies by vent | Integrated airflow shutoff/control |
| Airflow Noise | More restriction can create additional turbulence | More open airflow path |
| Construction | Factory-style plastic vent | Available in steel or aluminum |
| Appearance | Factory appearance | Multiple materials and finishes available |
Choosing a CAMPAIR High-Flow Air Vent
All three CAMPAIR vent families are designed around the same basic goal: provide higher airflow, directional control, and a more refined alternative to the factory Airstream ceiling vent.
The main differences are construction, finish, operating feel, and overall level of refinement.
CAMPAIR Steel Series High-Flow Air Vent
The Steel Series is the value-focused option. It uses polished stainless steel construction while providing the core CAMPAIR benefits of higher airflow, 360-degree adjustment, and individual airflow control.
It is a good choice for owners whose priority is improving airflow and control without stepping up to the more premium aluminum versions.
View the CAMPAIR Steel Series High-Flow Air Vent
CAMPAIR Satin Aluminum Series High-Flow Air Vent
The Satin Aluminum Series moves to anodized aluminum construction with a softer satin finish. It offers the same high-flow concept with a more refined appearance and feel than the Steel Series.
For owners looking for a balance between price, material, and finish, the Satin Aluminum Series sits in the middle of the CAMPAIR range.
View the CAMPAIR Satin Aluminum Series High-Flow Air Vent
CAMPAIR Signature Aluminum Series High-Flow Air Vent
The Signature Aluminum Series is the most refined version. It uses matte anodized aluminum and has the smoothest adjustment feel of the three series.
It is intended for owners who want the airflow improvements of a high-flow vent while also treating the ceiling hardware as part of the Airstream's interior design.
The Signature Series is also available with multiple trim-ring colors, allowing the vent installation to better coordinate with different Airstream interiors.
View the CAMPAIR Signature Aluminum Series High-Flow Air Vent
If you are unsure which version is right for your trailer, compare the Steel, Satin Aluminum, and Signature Aluminum CAMPAIR vents side by side.
Function vs. Finish: Which Series Should You Choose?
If airflow is your primary concern, you do not necessarily need the most expensive version.
The Steel Series provides the core high-flow functionality at the lowest price point. The Satin Aluminum Series adds anodized aluminum construction and a more refined finish. The Signature Aluminum Series focuses on premium materials, smoother operation, and greater visual refinement.
In other words, the decision is less about choosing a "good, better, best" HVAC solution and more about how much importance you place on material, appearance, and operating feel.
Replacing Multiple Airstream Air Vents
You do not necessarily have to replace every ceiling vent at once.
Some owners begin with the locations where airflow direction matters most, such as the bedroom or main seating area. This allows you to address a specific comfort issue without replacing every vent in the trailer.
Others choose to replace the complete set so that airflow control, materials, and appearance are consistent throughout the interior.
If your primary goal is troubleshooting a single area with poor airflow, it can make sense to start there. If the goal is to reduce vent restriction throughout the QuietStream system, replacing more of the outlets provides a more consistent airflow path.
Installation and Appearance Matter Too
An HVAC vent is functional hardware, but in an Airstream it is also something you see throughout the ceiling.
Replacing several vents can therefore have a noticeable effect on the interior appearance of the trailer.
CAMPAIR vents use a trim system designed to create a finished installation while covering the area around the original vent opening. This allows the upgraded vent to look intentional rather than like an aftermarket component added over the factory location.
Before selecting any replacement vent, owners should also consider nearby cabinetry and doors. Ceiling hardware located close to an overhead cabinet needs sufficient clearance when that cabinet is opened.
Dimensions, profiles, finishes, and other differences can be reviewed on the CAMPAIR air vent comparison page before choosing a series.
What High-Flow Air Vents Will Not Fix
A high-flow vent can reduce restriction at the ceiling outlet and give you much greater control over airflow direction, but it cannot correct every HVAC problem.
If your Airstream has very little airflow because of a clogged filter, blocked return, damaged duct, failing blower, frozen evaporator, or another mechanical problem, changing the ceiling vents will not solve the underlying issue.
Likewise, high-flow vents do not increase the rated cooling capacity of the rooftop air conditioner.
The benefit is simpler: they allow the conditioned air your HVAC system is already producing to exit the QuietStream ductwork through a less restrictive and more controllable outlet.
Airstream High-Flow Air Vent FAQ
How can I improve the airflow from my Airstream AC vents?
Start by checking the HVAC filters, return-air openings, and ceiling vents for restrictions. If the HVAC system is operating properly but the ceiling outlets remain restrictive, replacing the factory vents with a more open high-flow design can reduce restriction at the point where conditioned air enters the cabin.
Can I replace the factory Airstream QuietStream vents?
Yes. Compatible QuietStream ceiling vents can be replaced with aftermarket designs that provide different materials, airflow characteristics, and adjustment capabilities. Always verify compatibility with your specific Airstream before ordering.
Do AC vent covers affect airflow?
Yes. The size and geometry of an air outlet affect the resistance air encounters as it leaves the duct. A more restrictive opening can reduce airflow and increase air velocity and turbulence at the vent.
Will high-flow vents make my Airstream AC colder?
They do not increase the cooling capacity of the air conditioner. Their purpose is to reduce restriction and improve how the conditioned air already being produced is distributed inside the trailer.
Can high-flow vents reduce HVAC noise?
A less restrictive outlet can reduce some of the rushing or turbulent air noise created at the ceiling vent. It will not reduce mechanical noise from the air-conditioner compressor or blower itself.
Can I aim the airflow from CAMPAIR vents?
Yes. CAMPAIR high-flow vents provide 360-degree directional adjustment so airflow can be aimed toward or away from different areas of the trailer.
Can I shut off an individual CAMPAIR vent?
Yes. The vents include integrated airflow control, allowing an individual outlet to be reduced or closed when needed.
What is the difference between CAMPAIR Steel, Satin Aluminum, and Signature Aluminum vents?
All three are designed to provide high airflow and directional control. The primary differences are the materials, finish, adjustment feel, and level of refinement. Steel is the value-focused option, Satin Aluminum provides anodized aluminum construction and a more refined finish, and Signature Aluminum is the premium version with matte anodized construction and the smoothest adjustment feel.
For a complete side-by-side breakdown, see our CAMPAIR High-Flow Air Vent Comparison.
Getting More Control From Your Airstream's HVAC System
Improving comfort inside an Airstream is not always a matter of installing a larger air conditioner. How efficiently conditioned air moves through the system and where that air goes once it enters the trailer are equally important.
High-flow air vents address the final part of that system by reducing unnecessary outlet restriction and giving owners much greater control over airflow direction.
For some owners, that means directing cool air toward the bed at night. For others, it means reducing airflow noise, improving circulation in a difficult area, or simply replacing the factory ceiling hardware with something that better matches the rest of the Airstream interior.
The best vent ultimately depends on how much you value material, finish, and refinement, but the underlying idea is the same: let the HVAC system move air more freely and give you more control over where that air goes.
